Sewer Suction / Suction Cum Jetting Machine

Sewer Suction / Suction Cum Jetting Machine

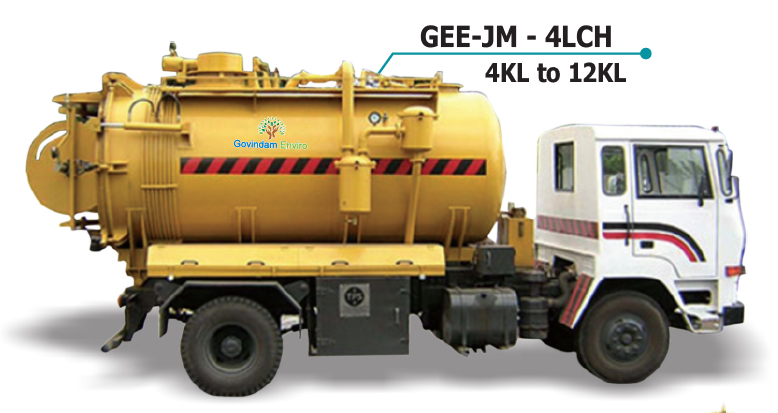

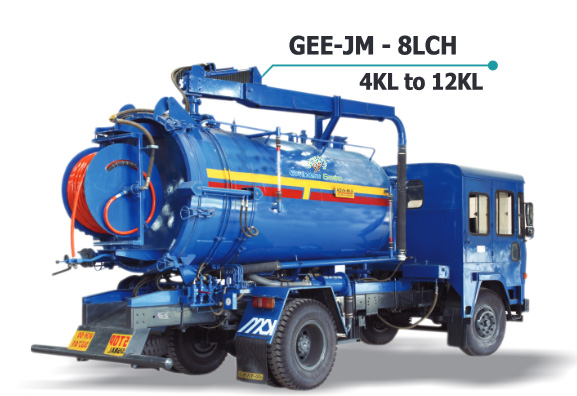

Suction Cum Jetting Machine

  • Sewer Suction cum jetting machine is used for cleaning of sewer lines by sucking out the dirt from chamber into its tank as well as clear the blockage / choke of sewer lines by high capacity jetting throw of water.
  • We are being manufactured with high capacity split tanks, jetting pump, vacuum pump & others with highly reliability, superior Quality.

ADVANTAGES

  • Suction Machine is used for cleaning of sewer lines by sucking out the dirt/dust/garbage/other impurities directly from chamber in to its vacuum tank.
  • Jetting Machine is used to clear the blockage/ sewer lines by high capacity jet throw of liquid that is store in its fresh water tank.
  • It’s easy operations, low maintenance & high capacity Suction-jetting System helps in superior cleaning of sewer lines with high productivity & in very less time.
  • Provision for manufacturing Suction and vacuum tank separately or combined on single vehicle.

TECHNICAL DATA

Code GEE SS-M/SJM/SSJM
Chassis 7 Ton, 9 Ton, 12 ton, 16Ton, 25 Ton/trailer or Customize etc..
Tank Size 4000 Ltrs, 6000 Ltrs, (8-20 Kl or Customized Tanks).
Sheet Material Mild Steel (IS : 2062)
Thickness 5 mm, 6mm, or as Per Requirement
Vacuum Pump M/s Jurop, Italy / Battioni Pagani Italy / Eq. (5000 LPM-13000 LPM Capacity)
Jetting Pump M/s Pratissoli, Italy / Equivalent Make (70-260 LPM)/ (90-150 Bar) Capacity Suction.
Hoses Hose Heavy Duty (upto 5″ & 15 Mtrs) Jetting Hose High Pressure (upto -11⁄4″&60 mrts) Washing Hose With Gun (1⁄2″& 10mrts) Optional
Power Take Off Vas/eq. With Upto 400 kgm Capacity Suitable Power Transfer Ratio to Drive Pumps
Hydraulic Cylinder 1 Nos. for Tank Tipping & 2 Nos for Door Opening
Hydraulic Pump Gear Pump (40-80 LPM)
Hydraulic Motor 60-160 CC
